In Windows Server 2012, Microsoft added a dynamic quorum feature in Failover Clustering. Dynamic quorum is applied to increase high availability of cluster itself. It can work with "Node Majority", "Node and Disk Majority" and "Node and File Share Majority". By default, Dynamic quorum is enabled for clusters. After enabled Dynamic quorum, cluster can now survive with only 1 node (Last Man Standing) in all other nodes failure environment. In previous version, the cluster active nodes must be greater than 50%. If not, the cluster stop running.
In Windows Server 2012 R2, Microsoft added Dynamic witness to work with a cluster which is configured to use dynamic quorum. Dynamic witness automatically adjust witness vote based in active cluster membership so Microsoft suggested that administrators add witness in a cluster and don't need to care about the cluster with odd or even nodes after enabling Dynamic witness in Windows Server 2012 R2 failover cluster environment.
There are some changes in the Failover Cluster Manager console. We will have a look at the console and PowerShell cmdlets.
There are 3 cluster nodes in my lab environment and I configured "Node Majority" cluster quorum settings.
Administrators also can perform "Get-ClusterQuorum | FL *" to verify the quorum type.
In Failover Cluster Manager console, the nodes window has been updated. Now, it shows current vote and assigned vote information to administrators. Administrators know which node participate the vote of this cluster.
To verify the "Dynamic Quorum" and "Dynamic Witness", administrators can perform "Get-Cluster | Ft Name, DynamicQuorum, WitnessDynamicWeight -Autosize" in PowerShell.
DynamicQuorum 1 is enabled and there is no witness in my lab environment so Witness DynamicWeight is 0.
In Windows Server 2012, administrators can change "Dynamic Quorum" in a wizard of Failover Cluster Manager. However, administrators need to perform cmdlet to disable "Dynamic Quorum" in Windows Server 2012 R2.

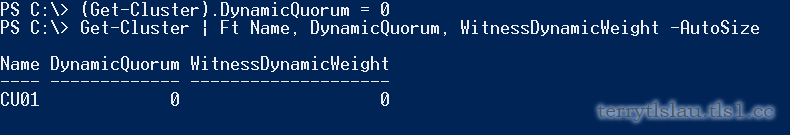

To disable "Dynamic Quorum", perform "(Get-Cluster).DynamicQuorum = 0" in PowerShell.
Remark: WitnessDynamicWeight cannot be modifed. It controls by cluster itself.
Now, I added a disk to be the witness of CU01.
"Quorum type" has been updated.
Besides, Microsoft recommended that administrators don't need to assign drive letter for the quorum disk.
Administrators can change the drive letter under "Cluster Core Resources".
In my lab environment, 3 Nodes + Witness disk = 4 votes. It may cause split-brain. However, the cluster is enabled "Dynamic Quorum" and "Dynamic Witness". The cluster automatically adjust the witness vote = 0 that's mean witness disk doesn't participate vote.
Perform "Get-Cluster | Ft Name, DynamicQuorum, WitnessDynamicWeight -Autosize" in PowerShell to verify it.
Now, I will stop cluster service in one of nodes.
Perform "Get-Cluster | Ft Name, DynamicQuorum, WitnessDynamicWeight -Autosize" in PowerShell to verify it again.
To prevent split-brain, the cluster automatically adjust the witness vote = 1 that's mean witness disk participates vote.
Now, I change the Witness to "Node and File Share Majority".
"Quorum type" has been updated.
Besides, the Share permission and NTFS permission of a folder which is stored the quorum should assign "Write" permission for cluster name object (CNO) and the file server is not in the same cluster node.
Perform "Get-Cluster | Ft Name, DynamicQuorum, WitnessDynamicWeight -Autosize" in PowerShell to verify it again.
Remark: If you have explicitly removed the vote of a node, the cluster cannot dynamically add or remove that vote.
What's New in Failover Clustering in Windows Server 2012 R2
Windows Server 2012 Failover Clustering Dynamic Quorum - Revisited
Windows Server 2012 Failover Clustering Dynamic Quorum
Configure and Manage the Quorum in a Windows Server 2012 Failover Cluster
In Windows Server 2012 R2, Microsoft added Dynamic witness to work with a cluster which is configured to use dynamic quorum. Dynamic witness automatically adjust witness vote based in active cluster membership so Microsoft suggested that administrators add witness in a cluster and don't need to care about the cluster with odd or even nodes after enabling Dynamic witness in Windows Server 2012 R2 failover cluster environment.
There are some changes in the Failover Cluster Manager console. We will have a look at the console and PowerShell cmdlets.
There are 3 cluster nodes in my lab environment and I configured "Node Majority" cluster quorum settings.
"Witness: None" is "Node Majority".
Administrators also can perform "Get-ClusterQuorum | FL *" to verify the quorum type.
In Windows Server 2012, administrators can change "Dynamic Quorum" in a wizard of Failover Cluster Manager. However, administrators need to perform cmdlet to disable "Dynamic Quorum" in Windows Server 2012 R2.
To disable "Dynamic Quorum", perform "(Get-Cluster).DynamicQuorum = 0" in PowerShell.
Now, I added a disk to be the witness of CU01.
Besides, Microsoft recommended that administrators don't need to assign drive letter for the quorum disk.
In my lab environment, 3 Nodes + Witness disk = 4 votes. It may cause split-brain. However, the cluster is enabled "Dynamic Quorum" and "Dynamic Witness". The cluster automatically adjust the witness vote = 0 that's mean witness disk doesn't participate vote.
Perform "Get-Cluster | Ft Name, DynamicQuorum, WitnessDynamicWeight -Autosize" in PowerShell to verify it.
Now, I change the Witness to "Node and File Share Majority".
Besides, the Share permission and NTFS permission of a folder which is stored the quorum should assign "Write" permission for cluster name object (CNO) and the file server is not in the same cluster node.
In the above tests, we can see the enhancement of dynamic quorum.
More information:
Failover Clustering: Quorum Model Design for Your Private CloudWhat's New in Failover Clustering in Windows Server 2012 R2
Windows Server 2012 Failover Clustering Dynamic Quorum - Revisited
Windows Server 2012 Failover Clustering Dynamic Quorum
Configure and Manage the Quorum in a Windows Server 2012 Failover Cluster
